ABB Medium Voltage Motors
ABB is the world’s leading supplier of medium-voltage squirrel cage motors and speed controllers. These motors are practically used in a wide range of applications in all industries including oil and gas, power generation, marine, pulp and paper, cement, mining, metal and water processing. ABB’s medium-voltage induction motors are greatly renowned for performance and reliability.
The best in its class, ABB’s high-voltage motor series is built on a modular platform. The simplicity of this concept ensures that these motors are tailored perfectly to the customer’s needs and applications. The design and manufacturing quality are key factors to the superior performance of ABB products. Accompanied by advanced ventilation technologies, the high performance of these motors provides substantial energy savings over the lifetime of the motor.
ABB has been developing and manufacturing electrical equipment for more than 100 years. This experience and our successful history of building close partnerships with our customers give you a superior competitive advantage. With the continuous development and utilization of the most advanced design, analysis and manufacturing technologies for each component, your operational efficiency is optimized, maximizing the overall reliability of your operations.
You will find the same highly professional approach as ABB from the first contact to specifications, manufacturing, delivery and installation and long-term maintenance and servicing. Supported by global resources and local services, ABB has the know-how and people to provide full support for the entire lifetime of your products.

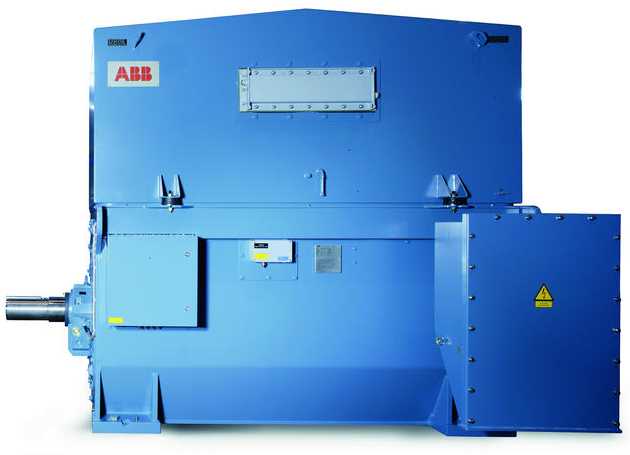

ABB Cast Iron Motors
ABB HXR series medium-voltage iron cast body motors are extremely efficient with low noise level. HXR series motors are always designed to meet the demands of customers. Losses are kept to a minimum thanks to the optimized stator, rotor and fan design. HXR series motors are ideal for constant and variable speed applications in paper, power and water industries.
Size IEC 355 – 560
Number of Poles 2-12
Voltage 380 – 11.500 V
Frequency 50 – 60 Hz
Protection IP55, IP56
Frame Cast Steel
Installation Type Horizontal and Vertical
Standards IEC, NEMA, BS, ANSI, IEEE, VDE, EN
Maritime Standards LRS, DNV, BV, ABS
- Click here for the product webpage

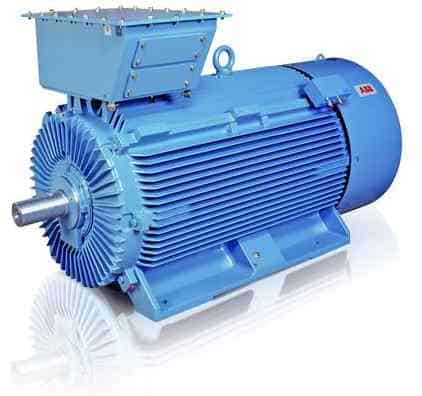

ABB Modular Induction Motors
ABB modular induction motors are designed in line with a modular structure to meet the needs of customers. In addition to superior performance, the highlighted features are design and manufacturing quality. The high efficiency and advanced ventilation technology featured in this series of motors provide a considerable level of energy savings.
Size IEC 400 – 1000
Number of poles 2 – 24
Voltage 380 – 13.800 V
Frequency 50 – 60 Hz
Protection IP55, IP56
Frame Flat sheet metal
Motor Types AMA, AMI
Installation type Horizontal and vertical
Standards IEC, NEMA, BS, ANSI, IEEE, VDE,
- Click here for the product webpage
ABB Slip-Ring Motors
ABB HXR series medium-voltage iron cast body motors are extremely efficient with low noise level. HXR series motors are always designed to meet the demands of customers. Losses are kept to a minimum thanks to the optimized stator, rotor and fan design. HXR series motors are ideal for constant and variable speed applications in paper, power and water industries.
Size IEC 400 – 1120
Number of poles 4 – 12
Voltage 380 – 13.800 V
Frequency 50 or 60 Hz
Protection IP55, IP23/IPW24
Frame Bent sheet steel
Motor Types AMA, AMI
Installation type Horizontal and vertical
Standards IEC, NEMA, GOST, CSA, BS, ANSI, IEEE, VDE, EN
- Click here for the product webpage
