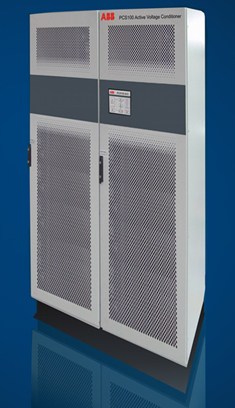

PCS100 AVC , ACTIVE VOLTAGE CONDITIONER
WHAT CAN PCS100 AVC DO?
Protects the plant by regulating voltage.
Protects the load by taking over the internal power supply from the network.
Includes no accumulator, capacitor or any device storing energy.
With no energy storage system, it offers;
High efficiency (99%),
Small installation area (1.6 m2/1MVA), and
Low operating cost.
STANDARD PRODUCT
Nominal
30% Correction 165-2000 kVA – 400 V – 50 Hz
40% Correction 125-1500 kVA – 400 V – 50 Hz
Power System
Fault Capacity> 40kA (depends on the model)
Correction Response Time
Initial < 250 microseconds Complete < 0.5 cycle (10ms) Correction Accuracy
(+/- %1 min) – (+/- %2 max)
Efficiency
%98 < efficiency (%99)
Nominal
30% Correction 165-2000 kVA – 400 V – 50 Hz
40% Correction 125-1500 kVA – 400 V – 50 Hz
Power System
Fault Capacity> 40kA (depends on the model)
Correction Response Time
Initial < 250 microseconds Complete < 0.5 cycle (10ms) Correction Accuracy
(+/- %1 min) – (+/- %2 max)
Efficiency
%98 < efficiency (%99)
ATMOSPHERIC CONDITIONS
Enclosure
IP20 standard
IP21 (optional roof kit)
Poluation Degree2
Minimum operating temp. 0oC
Maximum operating temp. 40oC
2% capacity derating for every oC above 40oC, maximum operating temperature of 50oC
Humidity <95% non-condensing
Noise level <75dBA
DOCUMENTATION
For Tecnical Support: teknik@kalecik.com
Enclosure
IP20 standard
IP21 (optional roof kit)
Poluation Degree2
Minimum operating temp. 0oC
Maximum operating temp. 40oC
2% capacity derating for every oC above 40oC, maximum operating temperature of 50oC
Humidity <95% non-condensing
Noise level <75dBA
DOCUMENTATION
- Click here for the product webpage
For Tecnical Support: teknik@kalecik.com
